GHL Wet Powder Pharmaceutical Granulation Equipments , Pharma Granulation Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUALIAN PHARMD |
| Certification: | ISO,GMP |
| Model Number: | FD-GHL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard wooden case |
| Delivery Time: | 50 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80 |
|
Detail Information |
|||
| Model No: | FD-GHL | Voltage: | 380V |
|---|---|---|---|
| Power(W): | 0.75KW~45KW | Loading Capacity: | 5-1500L |
| Additional Capabilities: | Granulating | Product Name: | Pharmaceutical Granulation Equipments |
| High Light: | high speed mixing granulator,vibrating fluid bed dryer |
||
Product Description
GHL Wet Powder Pharmaceutical Granulation Equipments , Pharma Granulation Machine

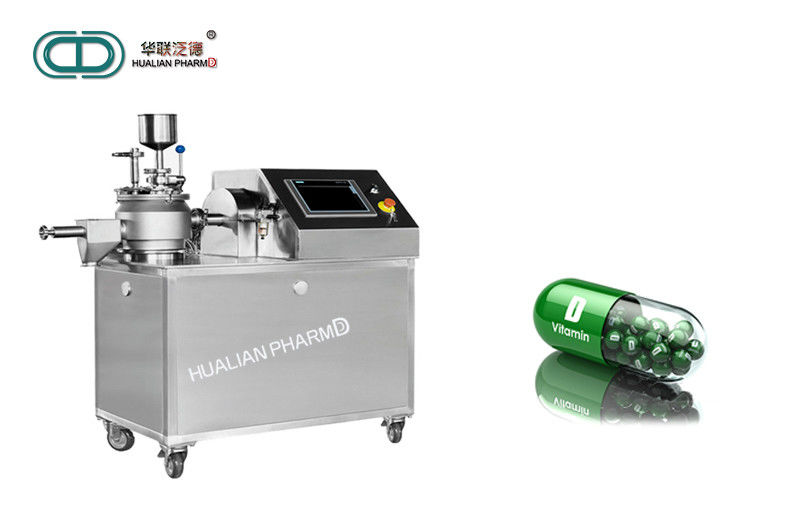

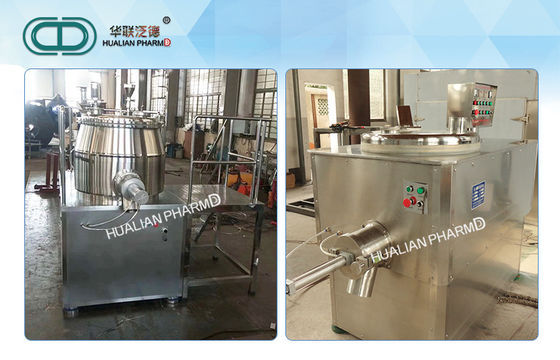

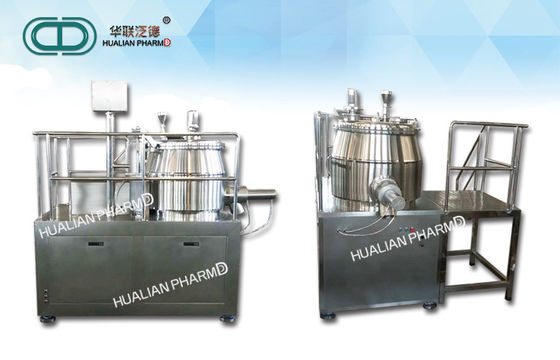

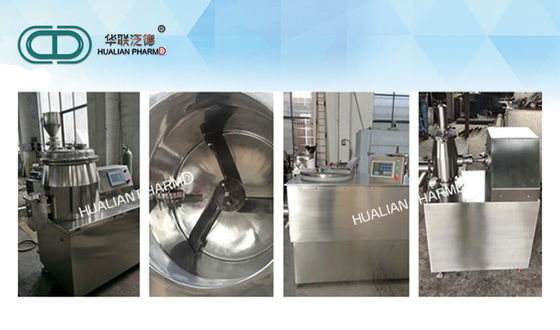

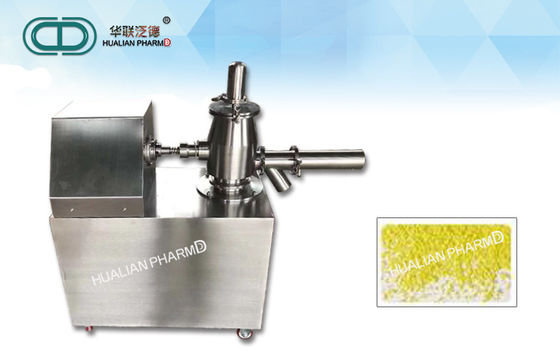

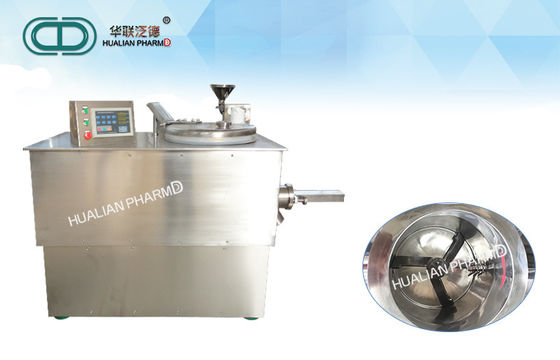

GHL Series HIGH SPEED MIXING GRANULATOR
GHL high speed mixing granulator, high speed mixing granulator, high efficiency wet mixing granulator:
The mixed granulator is a new process of preparation used in the pharmaceutical industry of China in the 1980s.Compared with the traditional granulation technology, the advantages of mixed granulation are as follows :
(1) less adhesive dose is required for granulation, so the drying time is short.
(2) granulation can be made according to the existing formula without changing any process.
(3) the granulation time is only 7 to 10 minutes per batch.
(4) the particle boundary is clear, approximately spherical, uniform, small particle point, low density, so that when pressing the sheet, good liquidity, easy to fill the mold cavity, small pressure, sheet weight is stable, reduce laborDegrees.
(5) the particles are small, the particle boundary is destroyed during stamping, and it is easy to dissolve and diffuse.
(6) the surface of the film is smooth and fine.
(7) compared with extruded granules, the prepared granules are more loose and more compact than boiling granules.
The mixed granulator is the ideal equipment to meet the requirements of G, M and P during the eighth five-year plan period. The GHL high-speed mixing granulator designed and produced by our factory is the result of introducing the same kind of products and improving it. Foreign adhesive as part of the resin used in the organic solvent, and the pharmaceutical industry in our country most of the starch adhesive, we successively for 4 kinds of sulfonated ammonium, vitamin, antibiotic, compound class 10 drugs for granulating and tabletting, 10%, 13%, 15%, 18% used many different proportion of starch and different concentrations of organic solvent adhesive, the excellent performance of particles is created quality conforms to the standard.
Principle:
Application:
Technical characters:
· The machine adapts a practical horizontal cylinder structure, its structure is isreasonable, no deed corner.
. The driving shaft is equipped with inflatable seal. While washing, the air canbe replaced by water.
. Fluidized granulating processed is used and the final granules are quite roundwith high fluidity.
. Compared with traditional technique, this type of machine can reduce 25% ofadhesive and also shorten the drying time.
. For each batch of material, with 2 minutes' dry mixing and 1-4 minutes'granulating, the efficiency is 4-5 times higher than that of traditional technique.
·Dry mixing, wet mixing and granulating are finished inside the same sealedcontainer, which is in conformity with the requirements of "GMP" .
·The whole operation has strict safe and protective measure
Main Technical Parameter:
| Type | A | B | C×D | E | F |
| 50 | 320 | 950 | 1250×800 | 970 | 1650 |
| 150 | 420 | 1000 | 1350×800 | 1050 | 1750 |
| 200 | 500 | 1100 | 1650×940 | 1450 | 2050 |
| 250 | 500 | 1160 | 1650×940 | 1400 | 2260 |
| 300 | 550 | 1200 | 1700×1000 | 1400 | 2310 |
| 400 | 670 | 1300 | 1860×1100 | 1550 | 2410 |
| 600 | 750 | 1500 | 2000×1230 | 1750 | 2610 |
| Name | Type | ||||||
| 50 | 150 | 200 | 250 | 300 | 400 | 600 | |
| Capacity (L) | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Output (kg/batch) | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Mixing speed (r.p.m | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Mixing power (kw) | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| Cutting speed (r.p.m) | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
| Cutting power (kw) | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| Amount of compressed air(m/min) | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
| Wieght(kg) | 500 | 800 | 1000 | 1300 | 1800 | 2200 | 2600 |
Scematic of installation:
