Universal Grind Grain Processing Equipment Pharmaceutical FD-30B 30B-C
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUALIAN PHARMD |
| Certification: | ISO,GMP |
| Model Number: | FD-30B/30B-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard wooden case |
| Delivery Time: | 50 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80 |
|
Detail Information |
|||
| Model No: | FD-30B/30B-C | Feed Size(mm): | 6-15 |
|---|---|---|---|
| Fineness(mesh): | 60-120 | Motor Power(kw): | 4-15 |
| Highlight: | high speed mixing granulator,stainless steel colloid mill |
||
Product Description

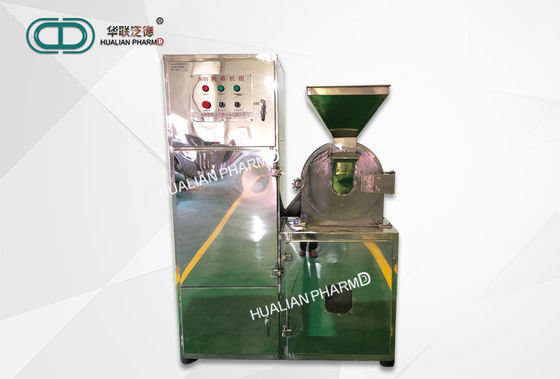

30B/30B-C Series Universal Grinder
The working principle of this machine is the material into the crushing chamber, rotating at high speed activities chainring crankset with fixed between the teeth by the impact, shear, friction, impacted between and materials under the action of being crushed by sieving. the needed powder.
The group grinder mill, material collection bins and vacuum cleaners, all made of stainless steel. Comply with drug production "GMP" requirements.
Application:
Principle:
This crusher consists of a grinder, an ESC material collection box and an ESC vacuum cleaner. To solve the dust flying in the crushing process of materials. The working principle of the machine is that the material enters the crushing chamber and is crushed under the impact, shear, friction and impact of the teeth between the high-speed rotating movable tooth plate and the fixed tooth plate. The crusher, material collecting box and vacuum cleaner of this crusher are all made of stainless steel. It meets the requirements of "GMP" for drug production.
Features:
This machine has wide application and is wide used for pharmaceutical industry,chemical industry, pesticide industry, foodstuff industry, grain industry and so on.
Main Technical Parameter:
| model | 20B-C | 30B-C | 40B-C | 60B-C |
| Productive capacity(kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| Speed of main shaft(r.p.m) | 4500 | 3800 | 3400 | 2800 |
| Feed size(mm) | 6 | 10 | 12 | 15 |
| Fineness (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Motor Power(kw) | 4 | 5.5 | 11 | 15 |
| Dust collection fan(kw) | 1.5 | 1.5 | 1.5 | 2.2 |
| Dimensions (L x W x H)(mm) | 1100x600x1650 | 1200x650x1650 | 1350x700x1700 | 1550x1000x1750 |
